Sequence display panel

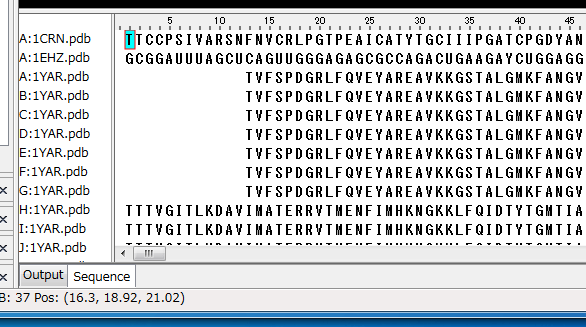

In the sequence display panel, which is located at the bottom of the CueMol2 window, you can browse the amino- and nucleic acid-sequences of the molecules loaded in the active scene.

In the sequence view:

• Amino acids are shown with single-letter notation.
• Nucleic acids (DNA and RNA) are shown with single-letter notation.
• Other non-standard residues, ligands, and ions, etc. are shown with asterisk mark (*).
• Selected residues are highlighted with cyan background.
• Dragging region is indicated by dark-green rectangle.
• Pivot residue is indicated by red rectangle.

Mouse operations in the sequence panel

Following mouse operations are possible in the sequence display panel:

Left click

Toggle the selection of the clicked residue in the corresponding molecule. The center of the Molecule view is also move to the corresponding residue. The pivot residue is also updated to the clicked position.

Left click+Shift key

Toggle the selection of the residues from the pivot to the clicked residues.

Right click

Display the context menu (see below) of the clicked residue in the corresponding molecule.

Drag (with left button)

Select (or unselect) the dragged region of the molecule. If the start point of the mouse drag is already selected, the dragged region will be unselected.

Context menu

The context menu shown in the below is displayed by the right-click of the sequence.

Molecule name and residue info

Molecule name and residue information are shown at the top of the menu.

Center here

Move the center of the Molecule view to the position of the corresponding residue.

Toggle sel

Toggle the selection of the corresponding residue.

Around Byresid

Select the "residues" in the specified distance from the current selected region(s).

Around

Select the "atoms" in the specified distance from the current selected region(s).

Unselect all

Unselect all atoms in the corresponding molecule (without affecting other molecules).

Invert sel

Invert selections in the corresponding molecule (without affecting other molecules).
